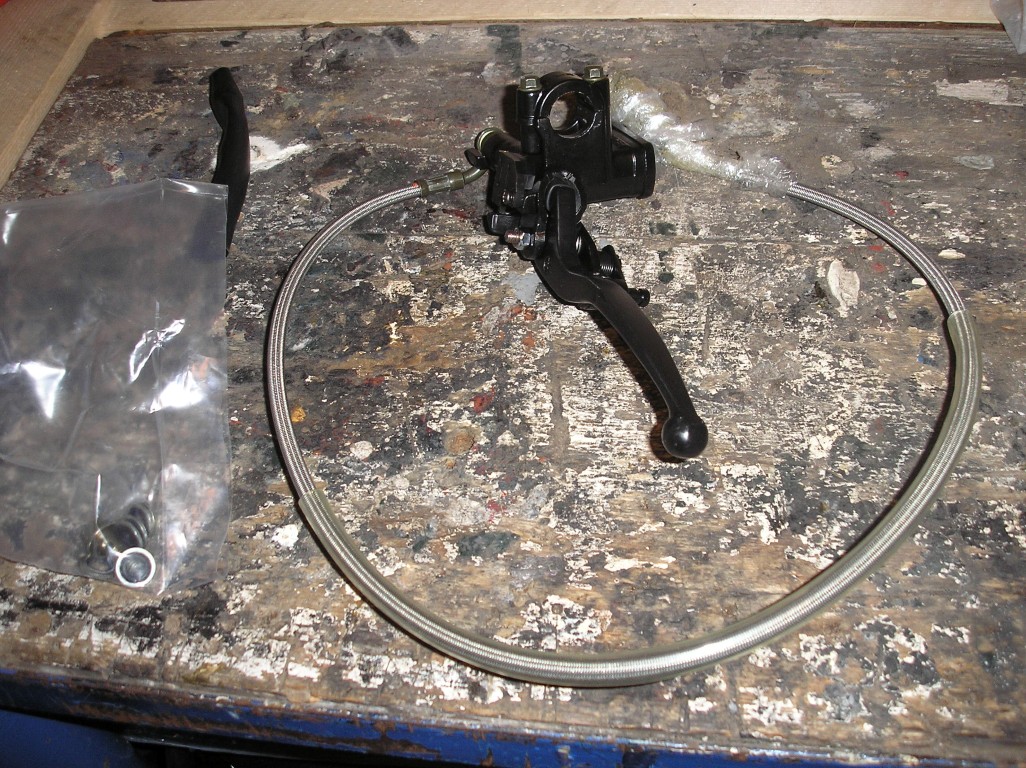

The new brake lever is here, this time it's the right one with hand brake.

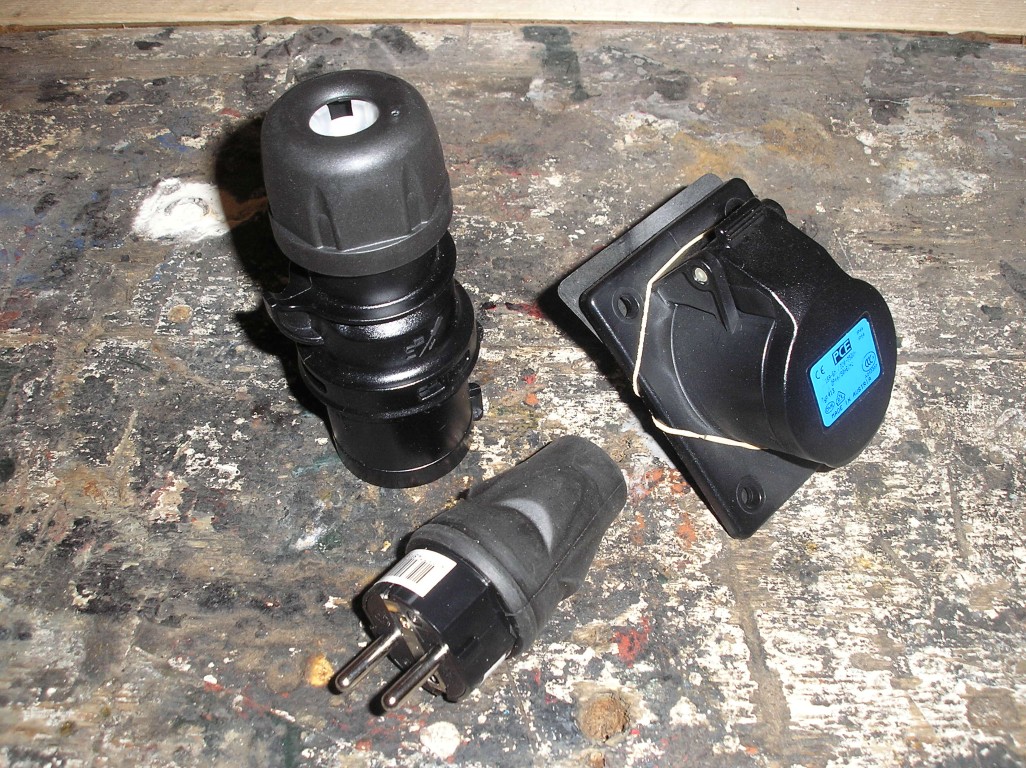

I had also ordered some new plugs for charging and received them today. I chose some black ones, will always look good. And also one that can be mounted on the quad bike itself.

Today I received some more small parts from Rebbl. Nothing special really, but needed nonetheless.

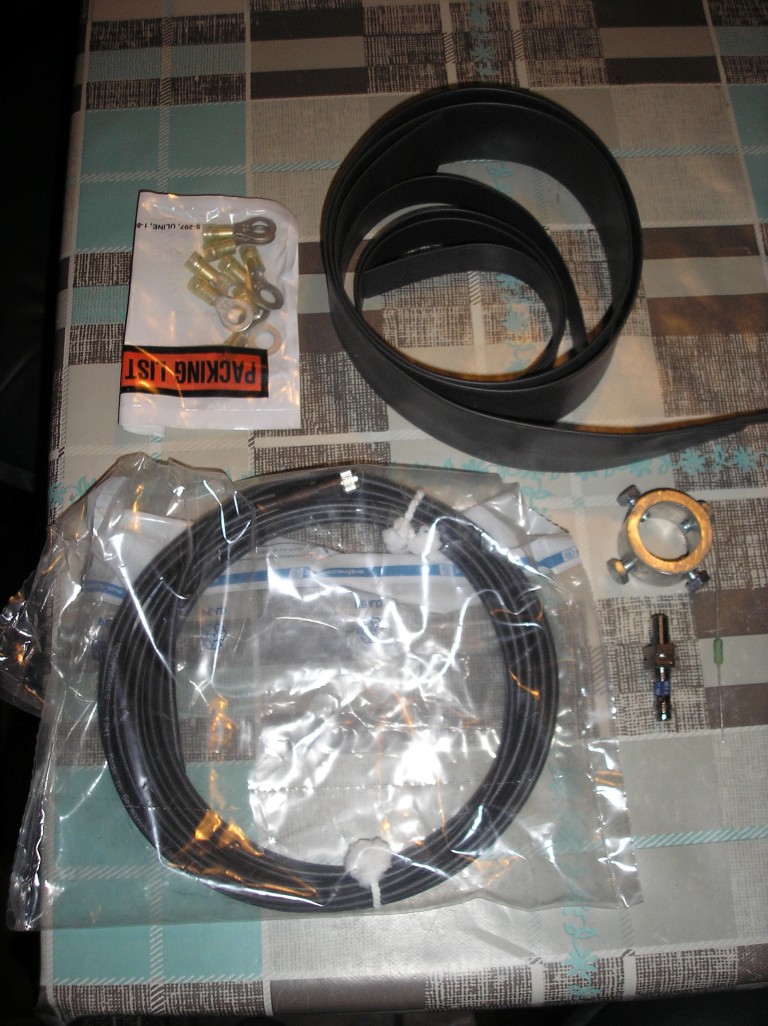

Cable shoes and black heat shrink for the cable between the charger and battery pack. Also black heat shrink for the orange cables. Already received some yellow for this but I assumed black would be sent by default, apparently not. Since this will be visible on quite a few places I just want it to be black.
Also a sensor for the RPM of the motor. The ring with 4 bolts will be placed on the shaft of the motor and the sensor will see those 4 bolts then. Thought it'd come in handy to be able to see the RPM of the motor, there's also a safety feature in the controller that can limit the motor's RPM. I can use that feature with this sensor.

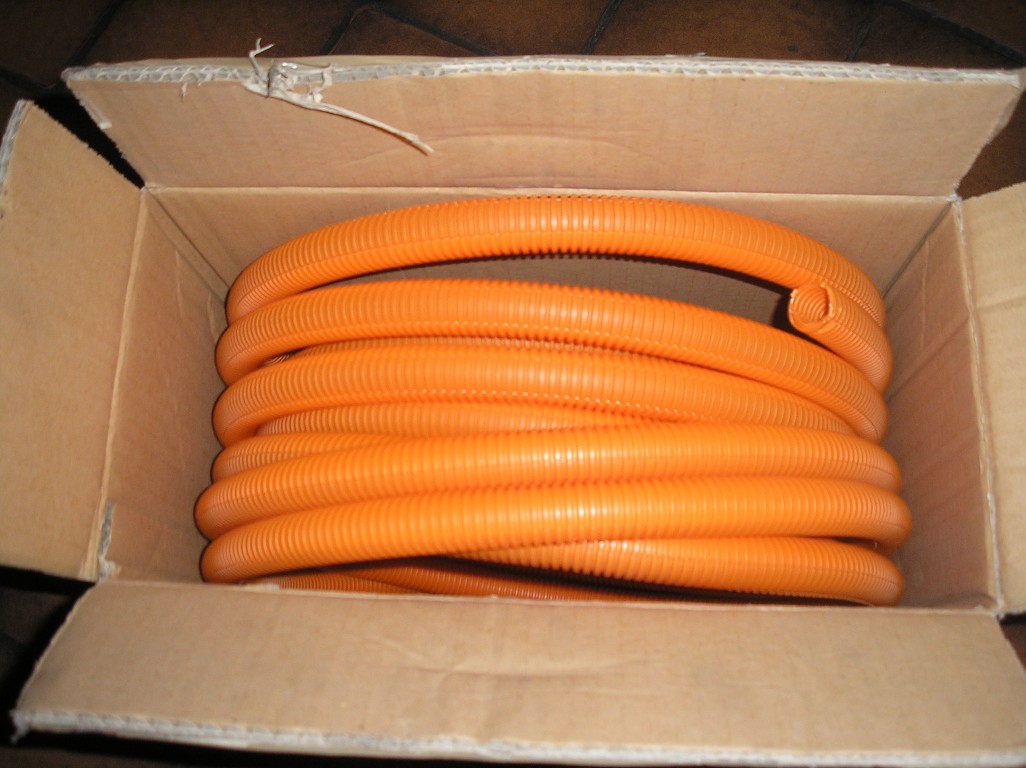

Orange cable loom, this will come around all the visible orange cables as extra protection. Not really necessary for the RDW inspection or anything but I just don't want anything happening to the isolation of the cables themselves.

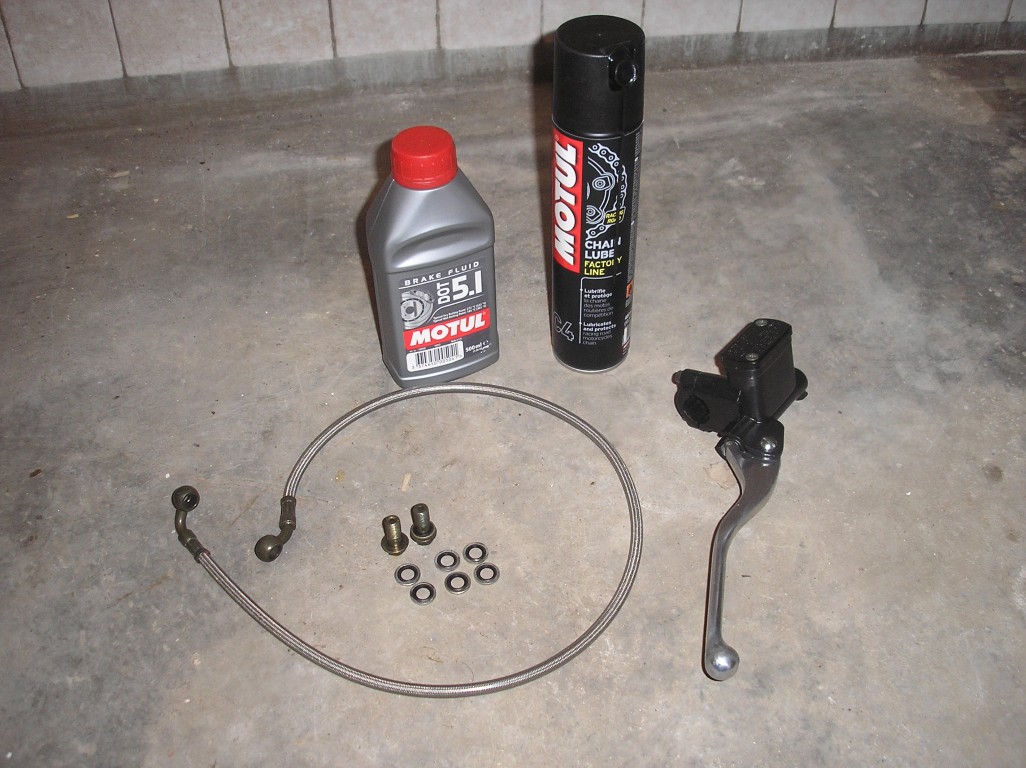

Today I received a new brake lever and brake line from ALG Motoparts to be able to split the braking system.

I actually wanted to try with the current braking system at first (foot brake brakes all 4 wheels at once) but I already had to move the brake line from front to back out of the way to be able to place the charger. So I think it's better to just split the braking system while I'm at it. It's safer anyway when the front and rear brakes are seperated from eachother.

Also bought some dot 5.1 brake fluid with it for best performance. And some chain lube, will need it soon anyway.

Today I didn't really do that much, only checked if the real parts fit just as good as the the paper models. And yes it did, still fits well.

Here's a better picture of the controller. On the picture from yesterday you couldn't really tell how big it is.

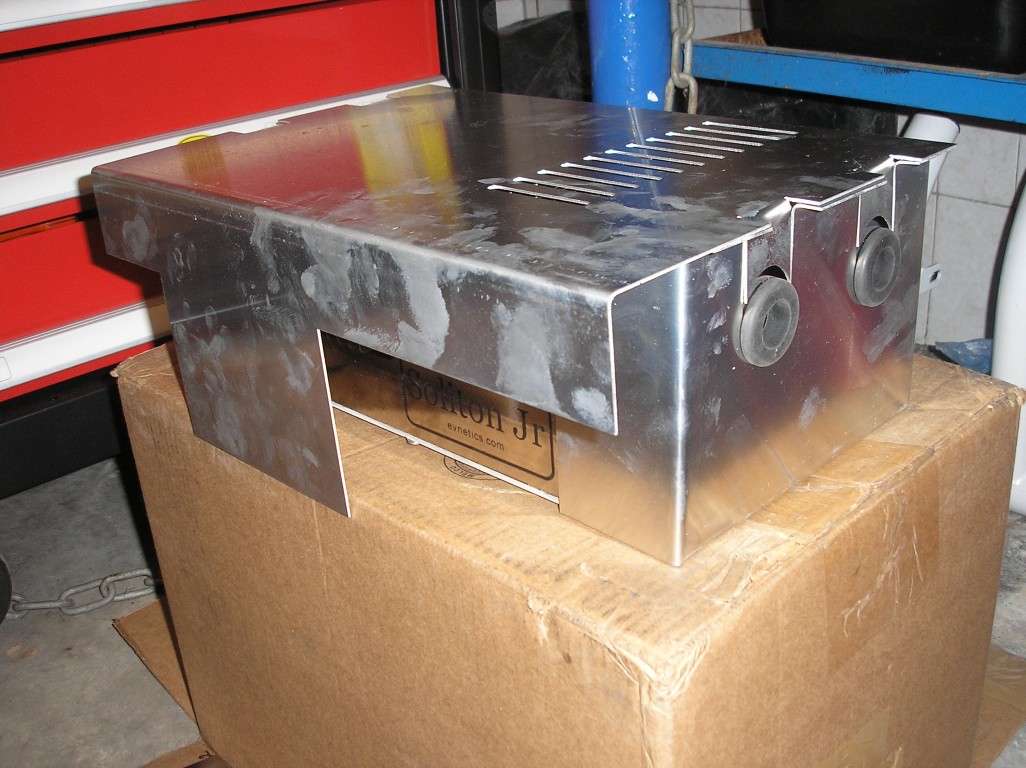

And here with the enclosure around it. Sadly this is mandatory to pass the inspection at the RDW. Can hardly even see the controller anymore.

Still have to drill holes into it to attach everything. It's odd that this hasn't been done yet since this enclosure only fits around this controller. So for everyone who buys one the holes will be in exactly the same spots. It also doesn't look very nice, not everything aligns with eachother (especially the rubbers don't) and they could've cleaned it a bit. Can't really get it off, maybe with some white spirit.

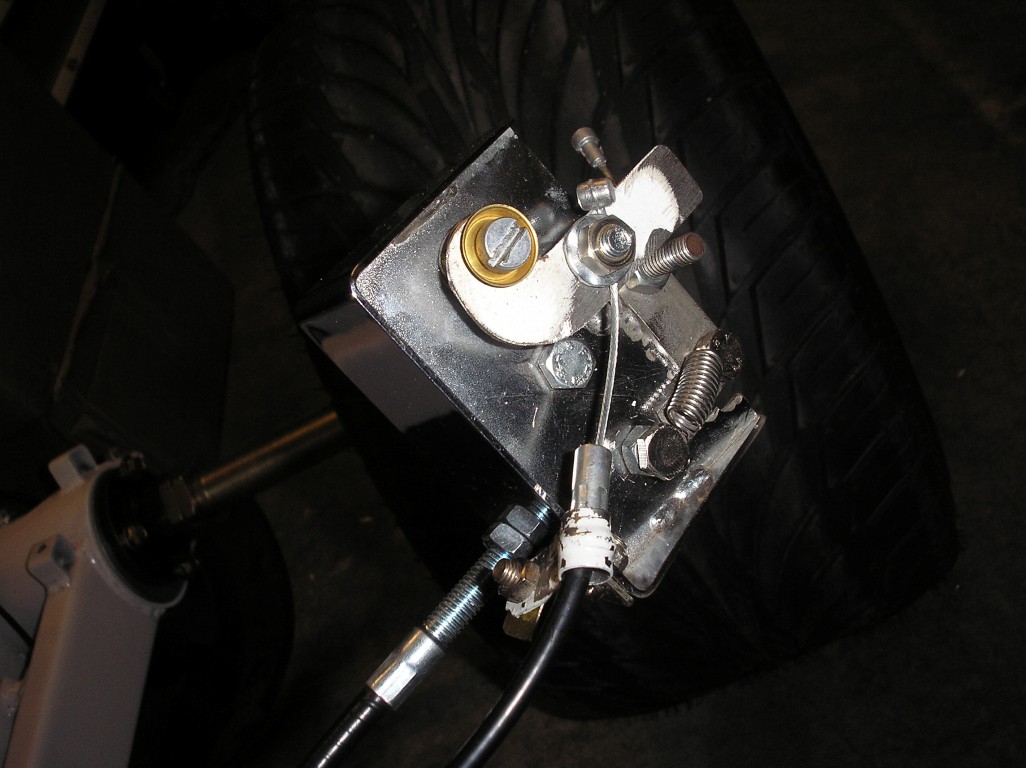

Also had another attempt at the reverse system. I made it like this now.

It works.. a little. Still don't think this is really great. Will probably stop to look for a mechanical solution and start looking at something electrical.

When I came home today I suddenly saw 3 packages, total weight of 40kg. What could be in there?

Finally the first few parts for the conversion have arrived. Thank you Rebbl!

Most important part, the Evnetics Soliton Jr controller. Way overkill for this project but it's the only one that has the needed certification to pass inspection at the RDW. But it's the best you can get anyway, very high quality, a lot of options and not to mention it looks amazing.

Next, on top is the hall sensor, also from Evnetics so very high quality as well. The 'gas' cable gets connected to this and it will send 0-5V to the controller. Below that are 4 RFI filters and rubbers to safely guide the cables through the enclosure for the controller.

Enclosure for the controller, this consists of a few parts. This enclosure and the RFI filters (also a seperate mesh shielding that's already inside of the cables) are unfortunately necessary for the controller and motor to pass inspection at the RDW. All because of EMI (electromagnetic interference). The controller won't really be visible anymore which is a shame. But there's no other way, the rules are like this everywhere in Europe.

Also important, the charger to charge the batteries. This is already preprogrammed for the LiFePo4 batteries. I only gave them the info of the CALB SE70's so I hope the settings are still right for the CALB CA60's as well. Still have to ask for this.

On top a 150W DC-DC converter. With electric vehicles this is used instead of a dynamo. This converts the 72V I'll be using for the propulsion to 12V to keep the 12V battery charged.
Also some plugs for charging, a fuse for the charger and a relais. I just don't know what the relais is for, as far as I know this isn't needed. But it'll be of good use anyway.
There's also a box which I think is meant for the fuse but it doesn't even fit. Will have to see what to do with this later, it's a pretty weird fuse anyway (can only see the fuse holder, fuse is inside of it). Usually other type of fuses are used for this.

Then there's still some cables.
This one is to be used as the charge cable I guess. Will still have to ask for some more information on this as I don't think it's all complete for making the charge cable. The yellow roll is heat shrink.

Cable for between the charger and batteries. Pretty nice they're tied together, easier to attach.

Orange cable for between the battery pack and the controller and between the controller and motor (with mesh shielding).

Orange cable for between the battery packs (without mesh shielding).

And last but not least cable shoes for the orange cables.

This isn't all the parts yet though, still need to get the following from different companies:
- Electric motor (within 2-3 weeks hopefully)
- Contactors (big relais) for forward/reverse (within 2-3 weeks hopefully)
- Emergency switch (within 2-3 weeks hopefully)
- Batteries (still have to order them, delivery time of 2 months)
- A few fuses (still have to order them)

But I did already get a lot of parts now, however I need to get some mounts made for the controller and motor. Only after that I can actually start with the wiring and other things. But I can actually do some things now while waiting for the motor to arrive.
